【our products】
■ For bias circuit, and an unnecessary radiation measure.
| |
Communication facility relation.
|
･･････ |
Mobile phone
LAN, RF Choke coil
Personal radio |
| |
Optical transmission apparatus relation. |
･･････ |
FTTH
Optical-communications module |
| |
Visual equipment relation. |
･･････ |
CATV
Car navigation |
| |
Measuring instrument relation. |
･･････ |
The bias circuit of a measuring instrument. |
Inquiry ==> info(a)seihoku.co.jp
(a) <-- @
 Chip size coil
RoHS
High frequency coiled chip inductor for surface-mount which is developed
as RF choke coil for bias circuit of the optical communication device.
In case taping package
package>>
| |

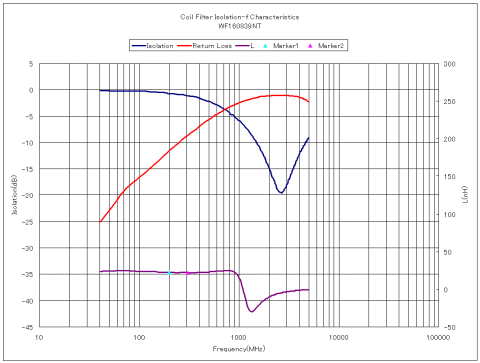

1608size : WF160839NT |
Square pillar structure
WF type |
  |
|
A:1.7mm B:1.6mm C:0.8mm |
| Isolation |
15dB(2000MHz) |
| Inductance |
40nH(200MHz) |
|
2000mA MAX |
Isolation
(ex) |
 |
|
|
|

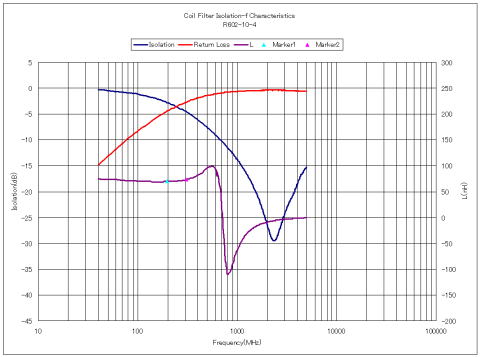

2012size : SF602-10-4 |
Pillar structure
SF type |
  |
|
A: 2.3mm B: 1.25mm |
| Isolation |
15dB(1200MHz) |
| Inductance |
80nH(200MHz) |
|
2000mA MAX |
Isolation
(ex) |
 |
Special type coil
RoHS
Square pillar structure chip inductor. （1.0x1.0x5.0mm）
In case box package
package>>
|

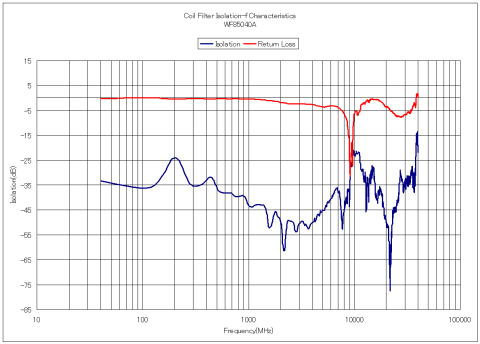

5010size : WF85040A |
Square pillar structure
|
  |
|
a:5.0mm b:1.0mm c:1.0mm d:5~8mm |
| Inductance |
25uH(1MHz) |
Isolation
(ex) |
 |
|
